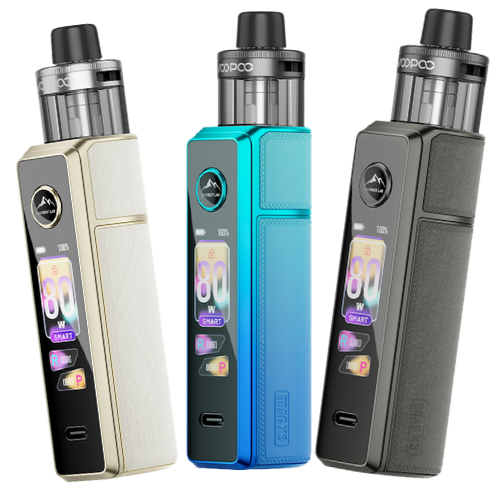

VOOPOO Drag X3 80W PnP X Pod Kit
The Drag X3 runs on a battery you supply. Drop in a single 18650 for a lighter carry or a 21700 when you want the runtime, and the Gene TT 2.0 board pushes up to 80W either way. The front is a 1.66in touchscreen rather than a button menu, and the touch sensor only answers to skin, so the device will not fire loose in a bag or pocket.
Highlights
- 5-80W adjustable, resistance range 0.1ohm to 3.0ohm
- Takes one 18650 or one 21700 18650 battery (sold separately)
- 1.66in HD touchscreen with a skin-detect security sensor
- Three modes: SMART reads the coil and sets wattage, RBA hands the wattage back to you, ECO stretches the cell
- Ships with the 5ml DTL PnP X cartridge and two coils, a 0.15ohm and a 0.3ohm
- Zinc alloy and leather body, top airflow, magnetic cartridge connection
Drag X3 Specs
| Spec | Detail |
|---|---|
| Wattage | 5-80W, adjustable |
| Battery | 1 x 18650 or 1 x 21700, external, not included |
| Charging | USB Type-C |
| Voltage | 3.2-4.2V |
| Resistance range | 0.1ohm to 3.0ohm |
| Cartridge capacity | 5ml PnP X, top airflow |
| Modes | SMART, RBA, ECO |
| Chipset | Gene TT 2.0 |
| Display | 1.66in HD touchscreen |
| Body | Zinc alloy and leather, magnetic connection, 360-degree airflow ring |
| Drip tip | Wide bore, on the DTL cartridge |
Coils and Pods That Fit
| Part | What you get | Notes |
|---|---|---|
| PnP-X coils | 0.15ohm to 1.0ohm, seven builds | Press-fit into the pod, no threading |
| PnP-X cartridge pods | Empty DTL or MTL pod, 5ml | Takes any PnP-X coil, coils sold separately |
| PnP-X Tank | Empty tank, 5ml, 510 threaded | MTL or DTL version, for 510 mods |
The Drag X3 uses the PnP-X deck, not the older PnP deck. The two do not interchange.
Which Resistance to Start With
| Coil | Wattage | Best For |
|---|---|---|
| 0.15ohm mesh | 60-80W | Direct lung, freebase |
| 0.2ohm mesh | 40-60W | Direct lung, freebase |
| 0.3ohm mesh | 32-40W | Direct lung to restricted direct lung |
| 0.45ohm | 25-32W | Restricted direct lung |
| 0.6ohm | 18-23W | Tighter draw, salt or freebase |
| 0.8ohm | 12-16W | Mouth to lung, nic salt |
| 1.0ohm MTL | 10-13W | Tightest draw, nic salt |
In the Box
- Drag X3 device
- PnP X DTL cartridge, 5ml
- 1x 0.15ohm PnP-X coil
- 1x 0.3ohm PnP-X coil
- Type-C cable
- User manual
- Battery not included
Why Shop VOOPOO at Central Vapors
We stock every PnP-X resistance from the 0.15ohm mesh through the 1.0ohm MTL build, plus spare PnP-X cartridge pods and the PnP-X Tank, so a replacement is a reorder instead of a hunt. Central Vapors has been filling vape orders since 2013, and every order is backed by our satisfaction guarantee.
Common Questions
| Q |
Does the Drag X3 come with a battery?
No. It takes one 18650 or one 21700 cell, bought separately. We carry both in our 18650 battery section. An 18650 keeps the device lighter; a 21700 runs longer between swaps.
|
| Q |
Which coils does it take?
PnP-X only. Seven resistances from 0.15ohm up to a 1.0ohm MTL build, and they press-fit into the cartridge. Original PnP coils will not seat in a PnP-X pod.
|
| Q |
What does the touch sensor do?
It reads skin contact before the device will fire, which is what keeps it from going off against keys or a pocket lining. Screen input works the same way.
|
| Q |
SMART, RBA or ECO?
SMART reads the coil and picks a wattage for you, which is where most people leave it. RBA unlocks manual wattage. ECO trims power to stretch the cell when you are away from a charger.
|
| Q |
Can I run nic salt in it?
Yes, on the higher-resistance end. The 0.8ohm or 1.0ohm MTL coil at 10-16W is the usual pairing. The kit ships with sub-ohm coils meant for freebase.
|
| Q |
What ships in the DTL cartridge?
One 5ml PnP X DTL cartridge with a wide bore tip, plus the two coils listed above. The MTL version of the cartridge is sold separately.
|
For use by adults 21+.
