JUGGERNAUT Prebuilt Coils | 7 Exotic Builds, Ready to Wick
Seven dense, multi-strand coil builds in one listing — pick a style from the options above and it ships pre-wrapped, ready to seat on your RDA or RTA build deck. This is the same "exotic 8-in-1" coil family sold under a few different names across the industry (Wotofo's own catalog carries the Juggernaut build too); Central Vapors' version covers 7 of those builds at the gauges listed below.
Highlights
- 7 builds to choose from, one style per order — select it in the dropdown above
- Resistances span 0.25Ω to 0.9Ω depending on the build
- Multi-core constructions built for a lot of e-liquid surface contact
- Legs are pre-wrapped; you still seat, trim, and wick each coil yourself

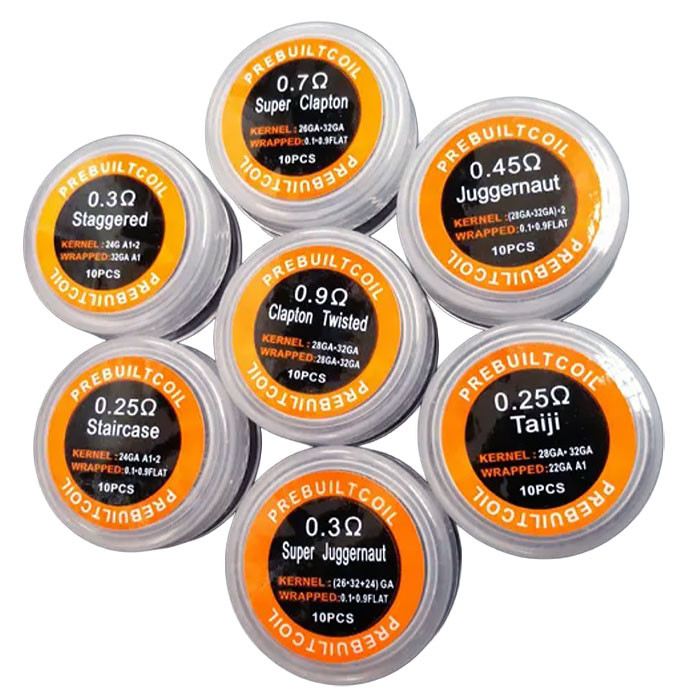

The 7 Builds
| Coil Style | Resistance | Wire Gauge |
|---|---|---|
| Juggernaut | 0.45Ω | 28GA×32GA + 28GA×33GA |
| Super Juggernaut | 0.3Ω | 26GA×32GA + 24GA |
| Super Clapton | 0.7Ω | (26GA×32GA)×32GA |
| Staggered | 0.3Ω | 24GA + 24GA |
| Staircase | 0.25Ω | 24GA + 24GA |
| Taihi | 0.25Ω | 28GA×32GA + 22GA |
| Clapton Twisted | 0.9Ω | 28GA×32GA + 28GA×32GA |
What Makes Each Build Different
Juggernaut wraps two clapton coils around a flat core wire — Wotofo's catalog carries the same build under the same name, so this isn't a house-invented name. Super Juggernaut follows the same idea at a lower resistance, pairing a clapton wrap with a straight core wire for a denser build.
Super Clapton takes a standard clapton (one core wire, one wrap) and wraps it a second time in fine wire, adding density on top of the usual clapton structure. Staggered and Staircase both start from two fused core wires, then offset the outer wraps so they land unevenly instead of stacking tight — that spacing opens up more surface for your wick to reach.
Taihi pairs a thin clapton core with an extra outer strand for a slightly different heat curve than Juggernaut. Clapton Twisted takes two full clapton coils and twists them together as a single build, which is why it runs the highest resistance of the seven at 0.9Ω.
All seven are Kanthal-based builds, so they're for power (wattage) mode — not temperature control.
Why Shop Prebuilt Coils at Central Vapors
We've sold rebuildable atomizer supplies since our early years in the vape business, and multi-strand kits like this one are a regular request from customers who want an exotic build without hand-wrapping it themselves. Central Vapors has been shipping orders since 2013, backed by our satisfaction guarantee.
Common Questions
| Q | Do I get all 7 styles in one order? No. Each order is one build at the resistance shown in the dropdown. Switch the selection to order a different style. |
| Q | Are these coils pre-wicked? No. They ship pre-wrapped only — you seat them on your build deck, pulse and trim the legs, then wick with cotton yourself. |
| Q | Will these work in temperature control mode? No. These are Kanthal builds, which fire correctly in power (wattage) mode only. |
| Q | Which build should a beginner start with? Staggered or Staircase are the simplest of the seven — two fused core wires without the extra clapton-on-clapton layering that Super Clapton or Clapton Twisted add. |
